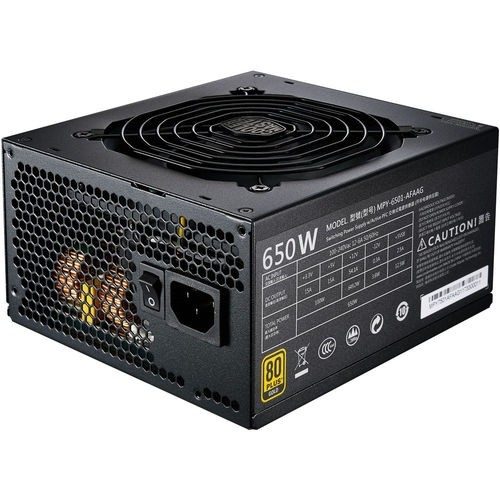

Cooler Master MWE Gold 650. Total power: 650 W

Tech Specs

Part Number: MPY-6501-AFAAG-WO

• Design
• Product colour Black
  Number of fans 1
  Cooling type Active
  Fan diameter 120
  Weight & dimensions
• Width 150
  Depth 160
  Weight 2210
  Height 86
  Power
• AC input voltage 100 – 240
  AC input frequency 50/60
  Input current 6 – 12
  Power protection features Over power,
• Over voltage, Overheating, Short circuit, Under voltage
  Total power 650
  Power Factor Correction (PFC) type Active
  Combined power (+3.3V) 100
  Combined power (+12V) 649.2
  Combined power (+5V) 100
  Combined power (-12V) 3.6
  Combined power (+5Vsb) 12.5
  Max output current (+3.3V) 15
  Max output current (+12V) 54.1
  Max output current (+5V) 15
  Max output current (-12V) 0.3
  Max output current (+5Vsb) 2.5
  Efficiency 90
  Power factor 0.9
  Hold time 14
  Power Good signal delay range 100 – 500
• Performance
• 80 PLUS certification 80 PLUS Gold
  Mean time between failures (MTBF) 100000
  Purpose PC
  Power supply unit (PSU) form factor ATX
  ATX version 2.31
  Certification CCC,CE, TUV-SUD, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
  Bearing technology LDB
  Supported motherboard form factors ATX

  Ports & interfaces

• Peripheral (Molex) power connectors (4-pin) 6
  Number of SATA power connectors 8
  Floppy drive power connector 1
  Motherboard power connector 20+4 pin ATX
  Motherboard power cable length 610
  PCI Express power connectors (6+2 pin) 4
  PCI Express power cable length 720
  CPU power cable length 650
  CPU power connector (4+4 pin) Y
  Floppy disk drive connector Y
  SATA power cable length 760
  Peripheral (Molex) power cable length 640,760
  ATX Power connector (24-pin) Y
  Operational conditions
• Operating temperature (T-T) 0 – 45
